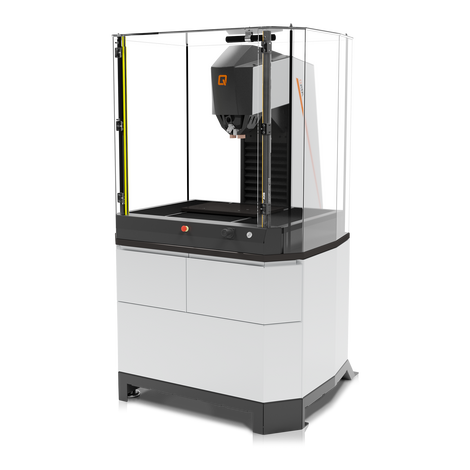

Macro Hardness Tester Qness 250 / 750 / 3000 A+ EVO Technical Data
| Supported test methods | Brinell, Vickers, Rockwell, Knoop, Plastics |
|---|---|

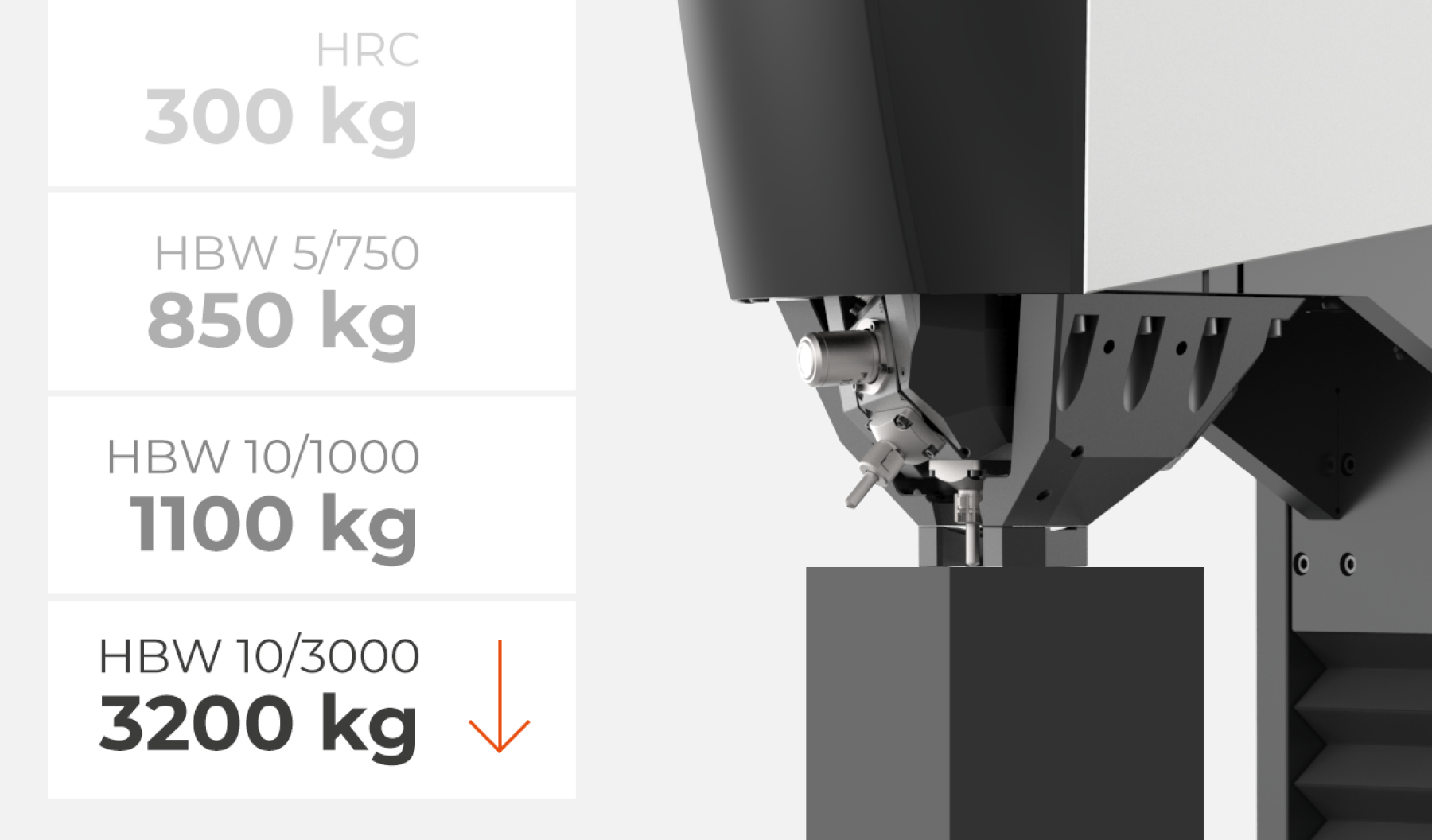

| Test force range | Model 250 A+: 1 - 250 kg (9.81 - 2450 N) | Model 750 A+: 0.3 – 750 kg (2.94 – 7358 N) | Model 3000 A+: 0.3 - 3000 kg (2.94 - 29430 N) |
| Sample image camera | resolution 5 megapixel |
| Height adjustment | electrical via Asynchron motor |

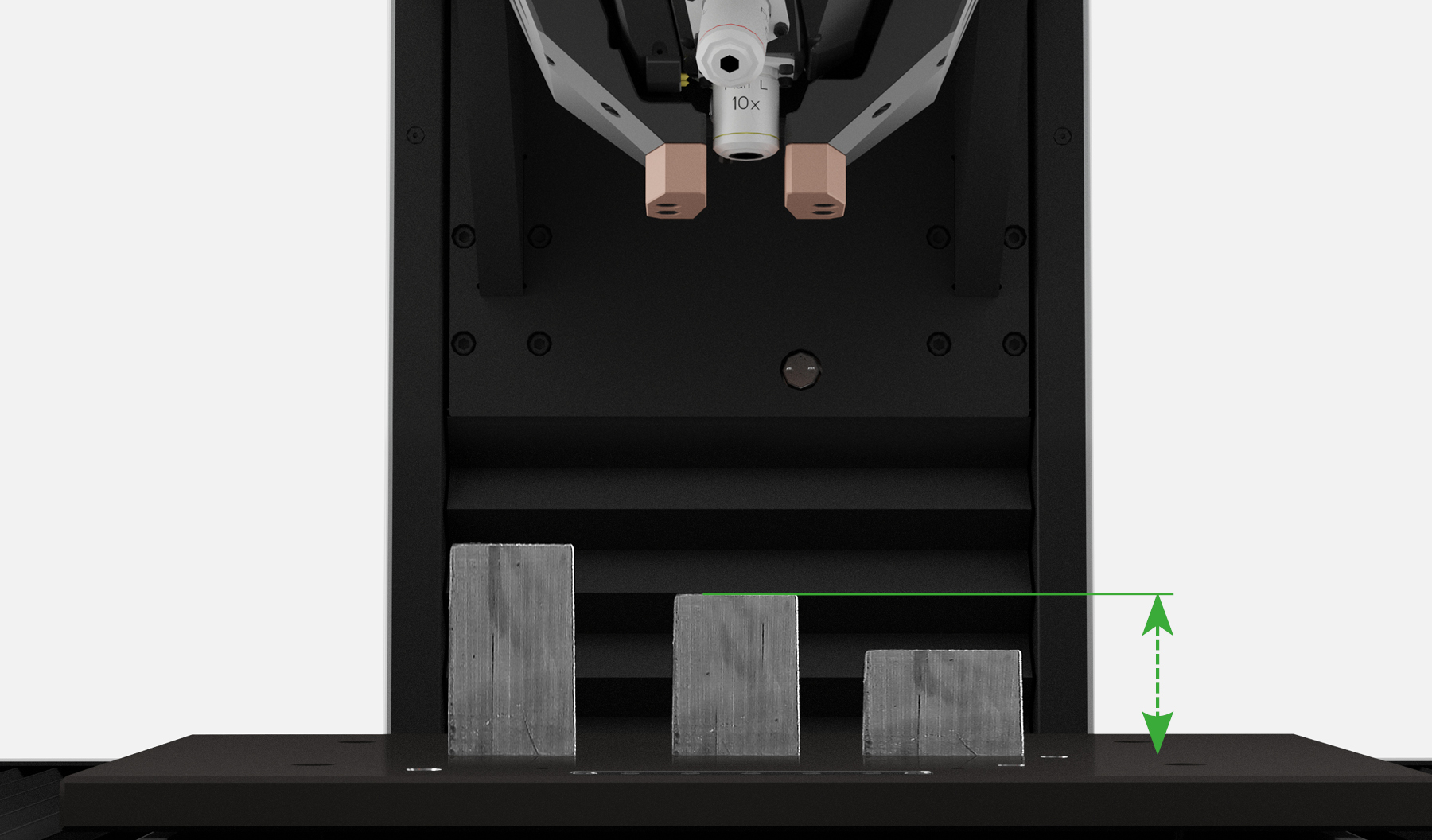

| Test height / Throat depth | 362 / 320 mm |

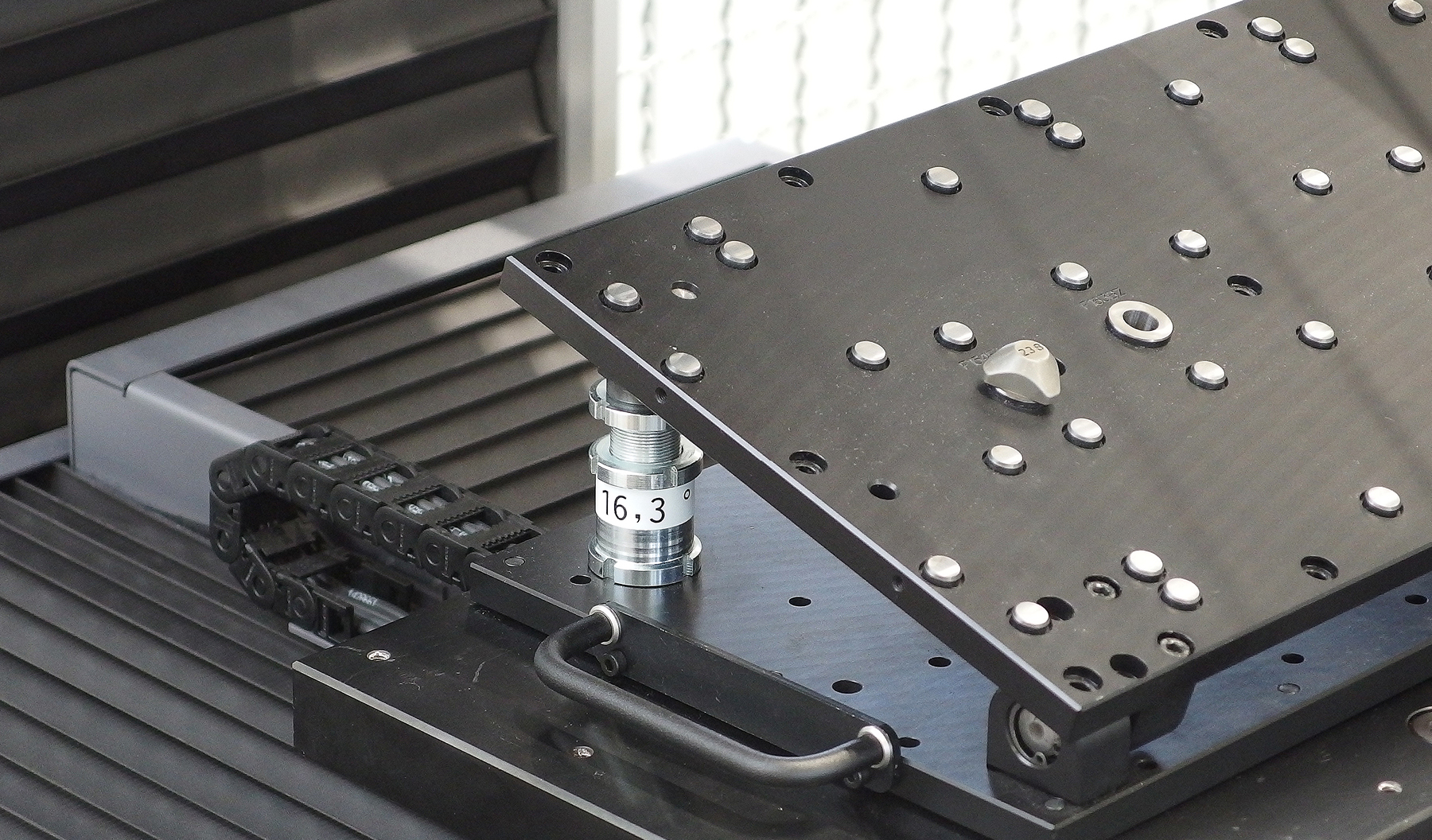

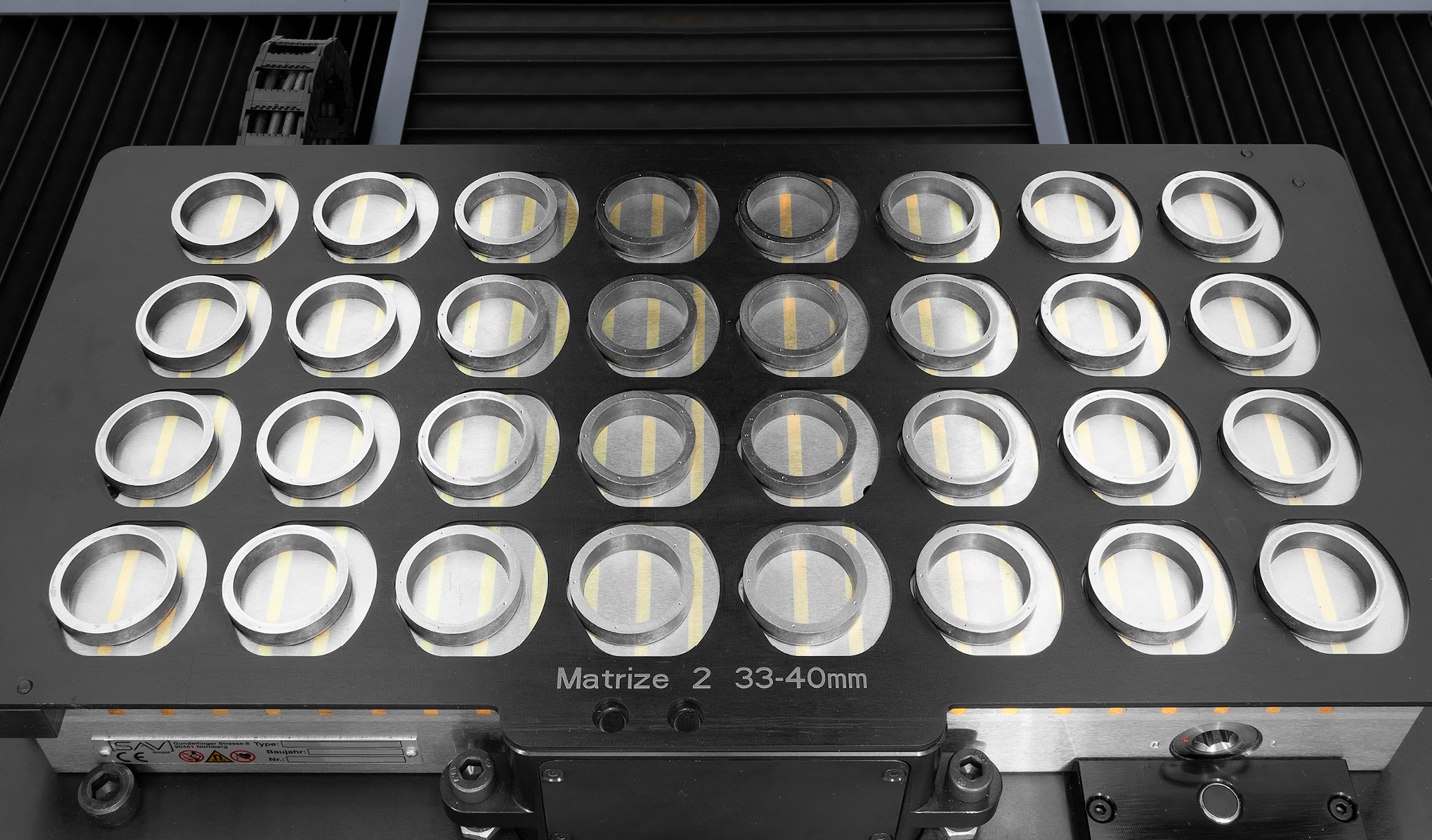

| Test anvil / Cross slide | motorized 450 x 297 mm |
| Traverse path | X 460 / Y 350 mm |
| Max. work piece weight | "unlimited" |
| Weight basic machine | 695 kg |
| Power supply | 230~ 50-60Hz 1/N/PE (option: 110~1/N/PE) |
| Max. power consumption | ~ 1680 W |
| Software | Qpix Control2 |
| Interfaces | 1x RJ45 (Ethernet) |
| Accessories and options | XLED1, XLED2, XLED5, 5x, 10x, 20x, 50x, 100x|Indenters (Vickers, Rockwell, Brinell), fix or swivelling downholder, signal lamp (A / A+) etc. |
