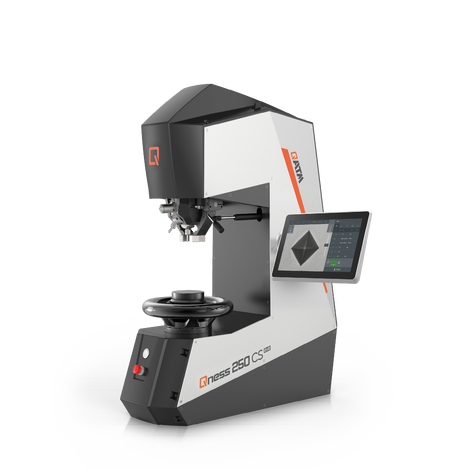

Qness 250 / 750 / 3000 CS EVO Technical Data
| Supported test methods | Brinell, Vickers, Rockwell, Knoop, Plastics |
|---|---|
| Test force range | Model 250 CS: 1 - 250 kg (9.81 - 2450 N) | Model 750 CS: 0.3 – 750 kg (2.94 – 7358 N) | Model 3000 CS: 0.3 - 3000 kg (2.94 - 29430 N) |
| Height adjustment | manual / spindle |
| Test height / Throat depth | 175 / 220 mm |
| Test anvil | ø 100 mm |
| Max. work piece weight | "unlimited" |
| Weight basic machine | 250 kg |
| Test sequence | fully automatic / electronic force control |
| Camera system / Image transfer | 5 MP Ethernet Industrial standard / up to 270FPS |
| Tool positions | 2 (Standard) or 8 (Tool Changer) |
| Software | Qpix T2 (Option: Qpix CONTROL 2 M) |
| Operating system / Hard disk | Windows 11 IoT / 128 GB SSD |
| Data interfaces | 2x USB 3.0, 2x USB 2.0, 1x RJ45 (Ethernet), 1x RS232, 1x DisplayPort |
| Lenses | XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Fields of view (depending on tool selection) | 0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1) |
| Display | Capacitive 12“ Touch - Display |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 480 W |
| Additional options | designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc. |
Qness 250 / 750 / 3000 C EVO Technical Data
| Supported test methods | Brinell, Vickers, Rockwell, Knoop, Plastics |
|---|---|
| Test force range | Model 250 C: 1 - 250 kg (9.81 - 2450 N) | Model 750 C: 0.3 – 750 kg (2.94 – 7358 N) | Model 3000 C: 0.3 - 3000 kg (2.94 - 29430 N) |
| Height adjustment | manual / spindle |
| Test height / Throat depth | 395 / 220 mm |
| Test anvil | ø 100 mm |
| Max. work piece weight | "unlimited" |
| Weight basic machine | 300 kg |
| Test sequence | fully automatic / electronic force control |
| Camera system / Image transfer | 5 MP Ethernet Industrial standard / up to 270FPS |
| Tool positions | 2 (Standard) or 8 (Tool Changer) |
| Software | Qpix T2 (Option: Qpix CONTROL 2 M) |
| Operating system / Hard disk | Windows 11 IoT / 128 GB SSD |
| Data interfaces | 2x USB 3.0, 2x USB 2.0, 1x RJ45 (Ethernet), 1x RS232, 1x DisplayPort |
| Lenses | XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Fields of view (depending on tool selection) | 0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1) |
| Display | Capacitive 12“ Touch - Display |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 480 W |
| Additional options | designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc. |
